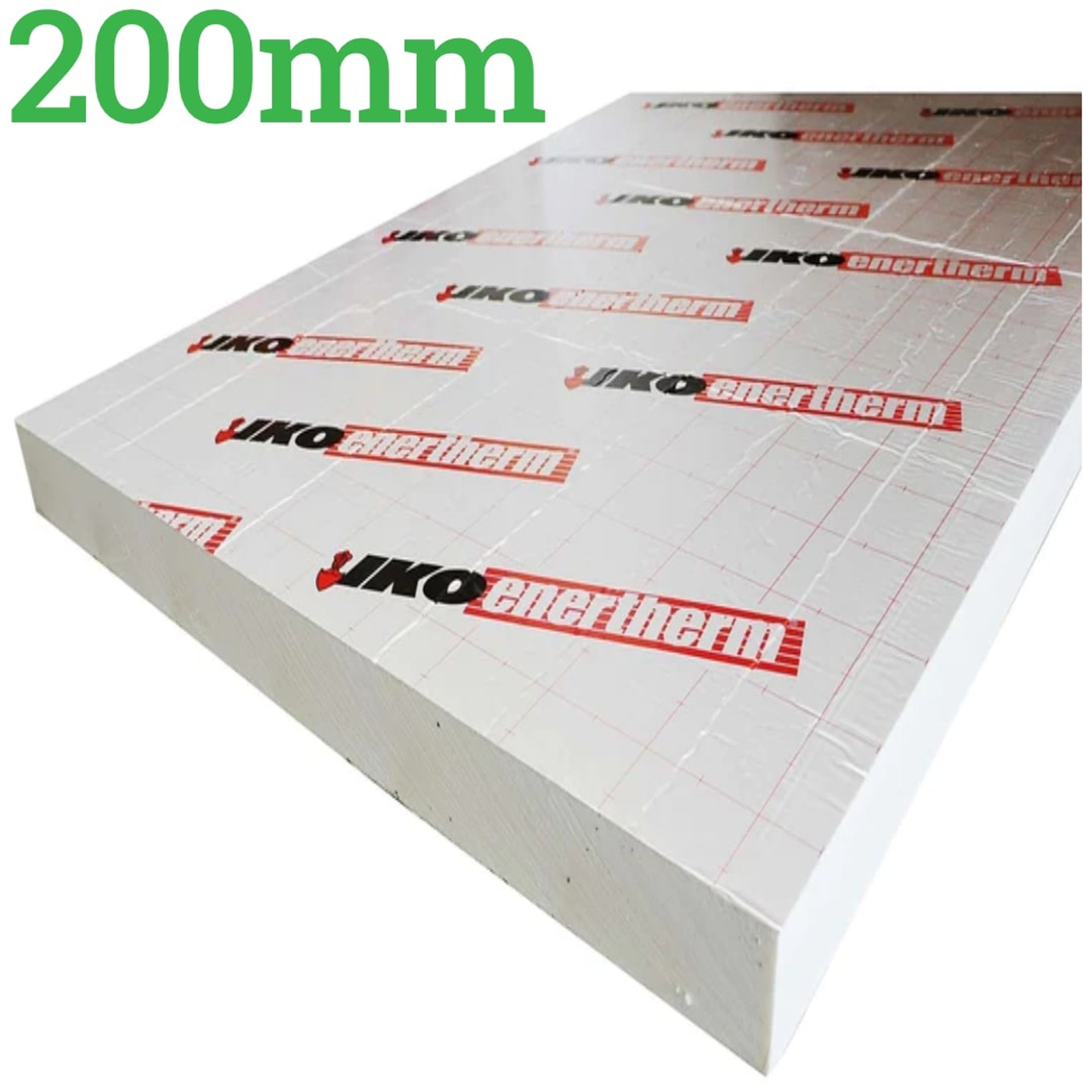

200mm IKO Enertherm ALU PIR Insulation Board

The 200mm IKO enertherm ALU PIR Insulation Board is a versatile insulation board made of a rigid polyisocyanurate foam core that is completely free of CFCs, HCFCs, or HFCs. This 200mm Insulation Board is covered on both sides with a gas-tight aluminum construction that consists of seven layers of high-quality reflecting ALU cladding, all combined into one structure. The PIR Board has been thoroughly tested to ensure its resistance to water absorption, mechanical stress, corrosion, and emissivity, even under the most extreme conditions.

Properties

Brand: IKO Enertherm®

Thickness: 200mm

Length: 2400mm

Width: 1200mm

Dimensions: 2,400mm x 1,200mm x 200mm

MPN: 30 IKO ALU

Density: 32 kg/m3

Compressive strength at: 10% deformation: 175kPa (17.5ton/m²)

R-Value: 9.05m2K/W

Thermal Conductivity: 0.022 W/mk

Water vapour diffusion:: PIR foam: μ = 60 – ALU facing μ > 100,000

Applications: Roofs, Walls, Floors, Timber & Steel Frame

BBA Certified: Yes, No.15/5283

Features: Multi-functional ALU PIR Insulation

By Project Type: DIY, New Build, Refurbishment

Installation Method: Loose Laid, Mechanically Fixed, Partially Bonded

Material: PIR

Facing: Aluminium composite facing on both sides

Product Colour: Silver

Product Finish: Aluminium Multi Layer Lamination

Sector: Community & Amenity, Domestic, Education, Health, Hotel & Leisure, Industrial, Mixed Use, Offices, Private Housing, Retail, Social Housing, Utilities

Substrate: Concrete, Masonry Structure, Metal, Timber (Plywood-OSB)

Fire Performance: EN 13501-1: Class E | BS 476 – p7 : Class 1

Range Of Applications

1. Rooftop: Flat Roof Insulation for timber, concrete and steel deck.
2. Sarking: pitched roof insulation (type nF with neutral felt).
3. Floor: floor insulation (underfloor heating and concrete floors).
4. Wall: cavity wall insulation.
5. Wrap: outside wall insulation (closed joints).
6. Comfort: loft insulation.
7. Comfort Easy: Loft floor insulation.

200mm IKO Enertherm PIR insulation is ideal for various uses such as external walls, pitched roofs, floors, internal walls, inverted roofs, metal roofs, and flat roofs due to its exceptional thermal performance. Its insulation properties enhance energy efficiency and thermal insulation in your property, irrespective of the application. A more energy-efficient home translates to lower heating or cooling expenses, a desirable outcome in the current energy bill climate. Additionally, the boards are environmentally friendly since they are entirely free from CFC, HCFC or HFC, which means they do not pose a threat to the environment.

About

Combining the 200mm PIR insulation board with Roof Membranes is effortless, and it maintains its insulating capacity and quality of build for years due to its dimensional stability. The boards are also rot and mold-resistant, ensuring that their longevity is further guaranteed. Moreover, 200mm Enertherm boards high thermal values and thin construction minimize the overall thickness of your build. This allows for optimal use of space in the roof, floor, or cavity when using 200mm IKO Enertherm.

Micro Cell Technology

IKO Enertherm possesses unique features attributed to its Micro Cell Technology (MCT), which is achieved through an ideal blend of raw materials and production parameters. This results in an exceptionally refined cell structure for the insulation material.

Shape retention: IKO Enertherm insulation boards maintain their shape and dimensional stability longer than PIR Boards with coarser foam and boards that do not shrink. This feature prevents cold bridging and ensures a longer service life without loss of insulating properties.

Moisture resistance: MCT technology in 200mm IKO insulation boards results in a very low long-term water absorption rate (< 0.6%) compared to other insulation materials. The PIR boards remain rot and mould-proof, and their insulation value is retained since increased weight due to water absorption is eliminated.

Pressure insulation: 200mm IKO PIR boards possess exceptional pressure resistance due to their high level of elasticity. The flexible cells provided by MCT technology ensure that the boards do not rupture, and indentations are not left even when walked on.

Info

Have a browse of our Iko Enertherm stock and filter by thickness or coverage on the left-hand side of the page. If you’d like to talk through the suitability of some products for your project, or get a quantity discount quotation please call us by phone on +4402039519012 , email sales@insulationstoreonline or Live Chat - Lowest UK Insulation Prices.
