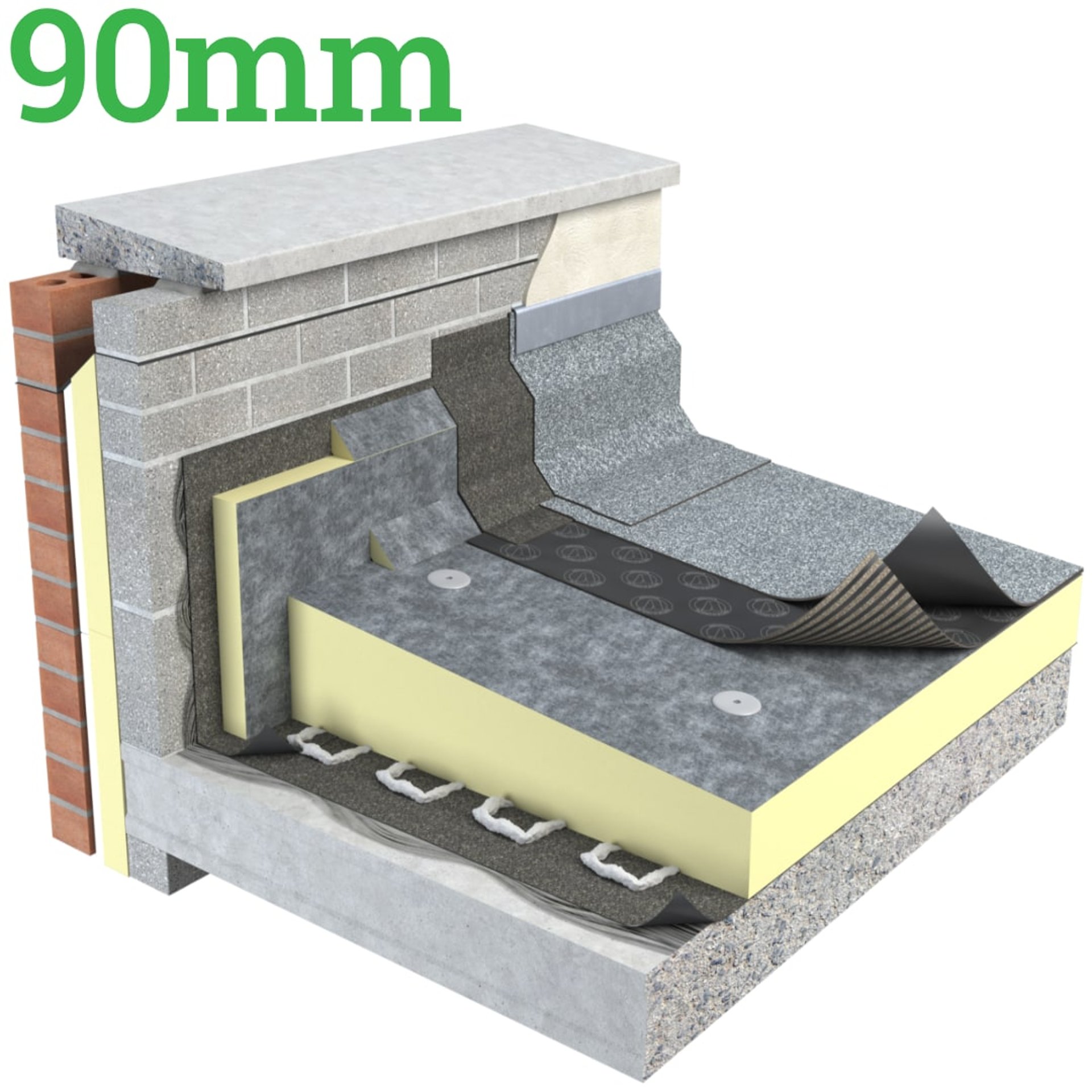

90mm Unilin Thin-R FR/MG Flat Roof Insulation Board ( Pack of 5 )

90mm Unilin FR/MG Flat Roof Insulation Board is a top-notch Polyisocyanurate with mineral-coated glass facers designed to excel in various applications, including beneath single-ply waterproofing systems and partially bonded built-up felt installations. The 90mm FR/MG roof insulation boards are secured by approved mechanical fixings or sufficiently bonded. The requirement for a separate water vapour control layer should be assessed in accordance with National Regulations.

90mm Unilin Thin-R FR/MG was previously known as 90mm Xtratherm Thin-R FR/MG.

Product Specification

Brand: Xtratherm / Unilin ®

Model:90mm FR/MG

Thickness: 90mm

Length: 1200mm

Width: 600mm

Dimensions: 1,200mm x 600mm x 90mm

Board Coverage: 0.72m2

Pack Coverage: 3.60 m2

Pack Quantity: 5

Density: 30kg/m3

Colour: Cream

Material: Polyisocyanurate (PIR Insulation)

Profile: Square Edge

R-Value: 3.6m2K/W

Thermal Conductivity: 0.024W/mK

Compressive strength: CS (10\Y) 150

Reaction to fire: Euroclass E

Inner facing: Mineral glass facer

Outer facing: Mineral glass facer

Shipping method: Articulated Vehicle ǀ Courier

Applications: Flat Roof Insulation

BBA Certified: Yes (No. 11/4878)

Features: Mineral coated glass facers

Advantages:

1. 90mm Unilin FR-MG outstanding Thermal Performance
2. Compatible with adhesively bonded single-ply roofing membranes installed on mechanically fixed or adhered boards.
3. Environmental Product Declaration (EPD) certified by IGBC is accessible for this product.

Roof Design

Consideration should be given to the recommendations of BS 4841: Part 3 and those of the Single Ply Roofing Association.

Falls

The fall on a flat roof should be constant and steep enough to ensure that rainfall does not pond.

Fire Performance

The fire rating of our 90mm Xtratherm FR-MG, when tested to EN 13501-5 and BS 476 Part 3 ‘External Fire Exposure Roof Test’, will be dependent upon waterproofing system specified.

Vapour Control Layer

A continuous, approved, vapour control layer should be used below the insulation. (Unless over a sealed metal deck system). For mechanically fixed boards, a minimum vapour control layer of a 1000 gauge polythene layer lapped and sealed with double-sided tape should be used below the Roof insulation. At vertical upstands and penetrations, the VCL should be turned up and sealed to encapsulate the insulation layer prior to the roof finish being completed.
