155mm Heaveguard Pile Collars EPS (Claymaster)

155mm Heaveguard Pile Collars EPS are lightweight, compressible products made from low-density Expanded Polystyrene. They are utilized to safeguard foundations from ground heave. These collars are an essential component of the Cordek Cellcore ground heave system, facilitating installation by securely wrapping around the pile. They also create a square edge for seamless fitting of Cellcore panels. 155mm Heaveguard Pile Collars are crafted from green-colored low-density expanded polystyrene, ensuring easy identification on site. They come in various collar sizes and thicknesses to cater to diverse requirements.

Product specification

Brand: Cordek®

Model: 155mm Pile Collars

Thickness: 155mm

Standard Length: 450mm

Standard Width: 450mm

Standard Dimensions: 450mm x 450mm x 155mm

Available Dimensions: 450mm x 600mm / 500mm x 500mm / 600mm x 600mm / 600mm x 800mm / 700mm x 700mm / 800mm x 800mm / 900mm x 1200mm / 1200mm x 1200mm

Colour: Light green or pink

Material: Expanded Polystyrene (EPS Insulation)

Profile: Compressible-fill material

Shipping method: Rigid Vehicle ǀ Courier

Grade: Meets the NHBC’s Technical Standards

Applications: Foundations ǀ Piled Ground Beams

BBA Certified: Yes (No.17/5448)

Soil heave potential: Medium

Features: Protection Against Ground Heave ǀ Foundations

Safe load: 20 kN/m2

Fail load: 40 kN/m2 produce 50% compression

Manufacturer: Cordek®

Key Benefits:

1. Facilitates effortless installation of Cellcore panels
2. Offers robust protection against ground heave
3. Available in a diverse selection of collar sizes and thicknesses to accommodate various applications
4. Green color ensures quick and convenient identification on site

Availability

Every cellcore 155mm Heaveguard Pile Collar is customarily crafted to match the width of the ground beam and the thickness of the associated Cellcore panel. The inner void of the Pile Collar is meticulously tailored to accommodate the pile's diameter. Additionally, each pile collar is supplied in two segments, facilitating effortless installation.

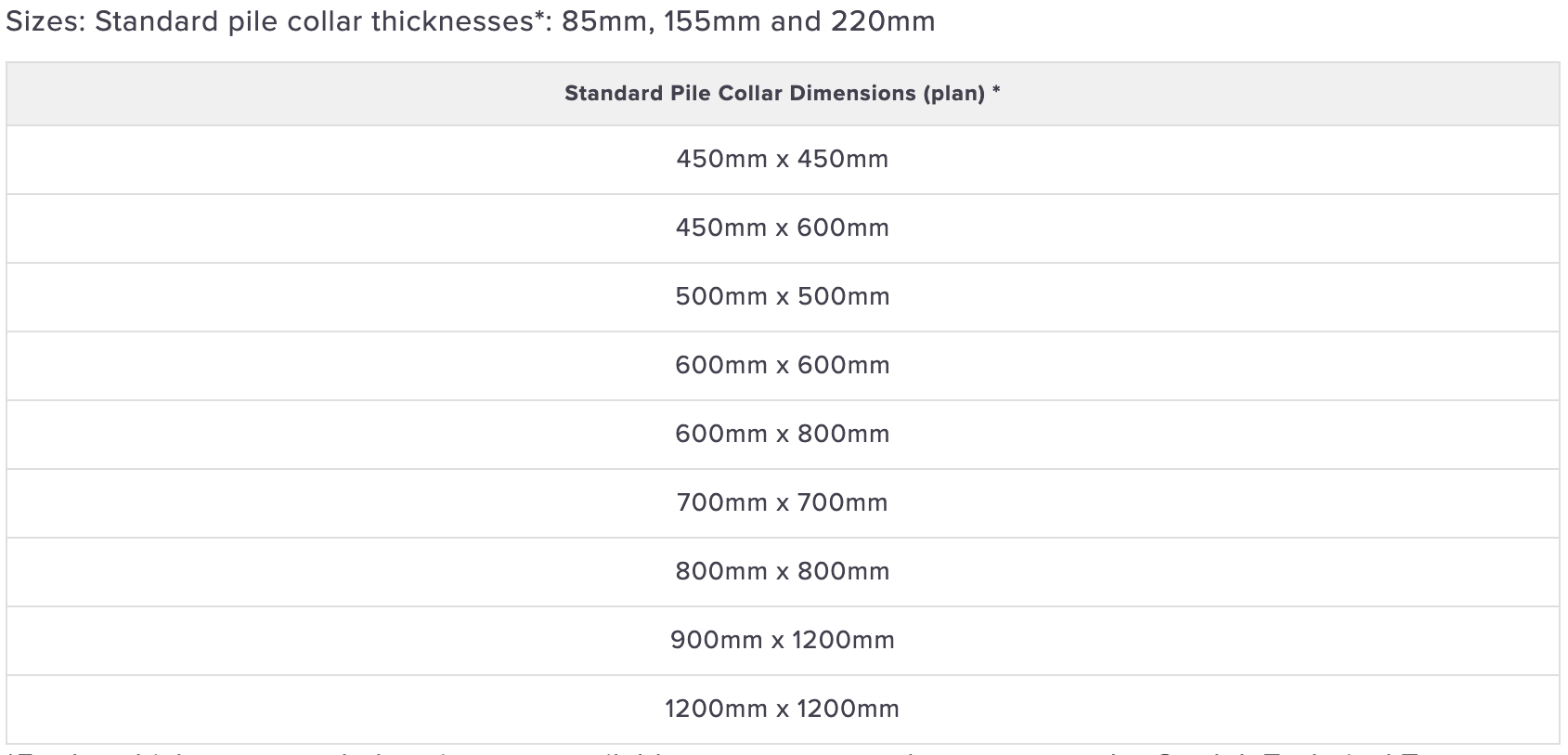

Available Sizes: Standard pile collar thickness options*: 85mm, 155mm, and 220mm.

In order to generate a quotation, we kindly request that you provide us with the following information: Required Quantity Required Length/Slab (Standard 450mm / Max 1200mm) Required Width/Slab (Standard 450mm / Max 1200mm)

Further thicknesses and plan sizes are available upon request, please contact the InsulationStore Technical Team on 02039519012 for further information.
