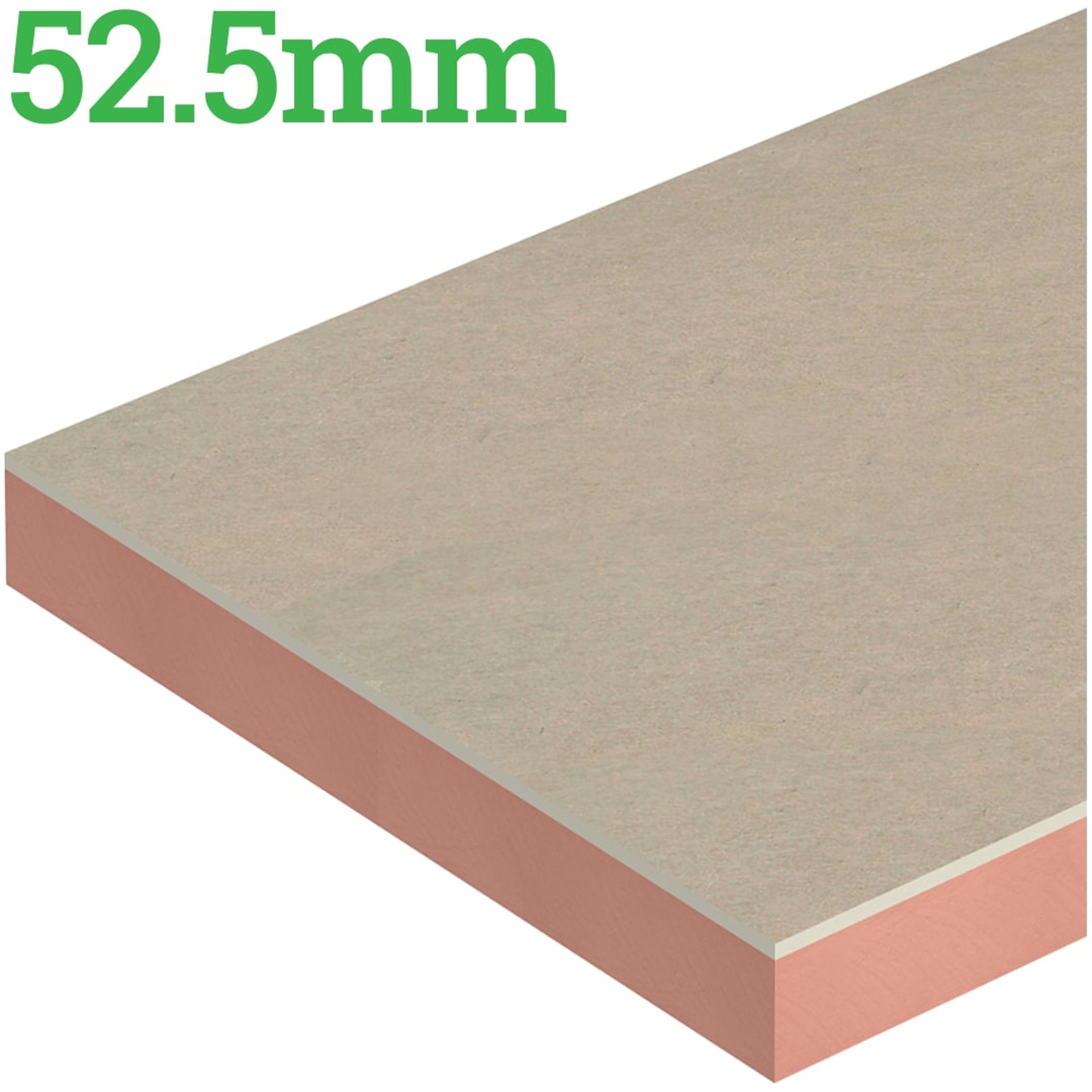

52.5mm Recticel Eurothane PL PIR Insulated Plasterboard

This 52.5mm Recticel Insulated Plasterboard is designed to be compatible with both mechanical fixing and dot and dab fixing methods. Its uniform size is tightly controlled, which helps to minimize thermal bridging. Additionally, the plasterboard is bonded at the factory, ensuring optimal dimensions and adhesion between layers.

This convenient 52.5mm board combines insulation and plasterboard in one, making it ideal for internal wall insulation and pitched roof applications.

Key benefits

1. Good thermal performance: λ = 0.022 W/mK
2. 3-in-1 solution: insulation board, vapour control layer and plasterboard
3. Multiple fixing methods can be applied

Properties

Model: 52.5mm Recticel Eurothane PL

Thickness: 52.5mm

Pack Quantity: 1 sheet

Dimensions: 2,400mm x 1,200mm x 52.5mm ( 40mm PIR bonded to 12.5mm Plasterboard)

Length: 2400mm

Width: 1200mm

Weight : Eco-Liner has an approximate weight of 10.76 kg/m2 at a thickness of 82.5 mm (insulation thickness 70 mm plus 12.5 mm plasterboard)

Compressive Strength: >>120kPa

Material: Its core consists of rigid polyisocyanurate PIR foam. The board is faced with a gas diffusion tight multilayer foil on both sides and post laminated with a plasterboard on one side.

Thermal Conductivity: Insulation: 0.022 W/mK & Plasterboard: 0.19 W/mK

Thermal Resistance: 1.85 m2K/W

Core Density: ± 30 kg/m³

Water vapour diffusion coefficient: 50-100µ

Fire Classification: European Classification (Euroclass) B-s1,d0 when classified to EN 13501-1: 2018.

Coverage: 2.88m2

Facing: Gas diffusion tight multilayer foil on both sides and a post laminated plasterboard (12,5mm) on one side.

Finish: Straight edges PIR / Tapered edge plasterboard on the long sides

Fire Performance: Euroclass B-s1, d0

Application: 52.5mm Recticel PL is used for internal wall insulation and pitched roof applications.

Commercial Or Domestic Use: Both

Feel good inside

Recticel 52.5mm Insulation offers maximum benefits for your living or working environment, including a stable inside temperature, quick installation, lightweight materials, and easy cutting capabilities. Our insulation boards are designed to create a healthy and comfortable atmosphere while reducing installation time on-site.

Our 52.5mm Recticel Insulated Plasterboards are user-friendly and easy to handle, thanks to their lightweight construction. Additionally, they can be easily cut to fit different dimensions, allowing for customization to fit any project needs.

With their high insulation values, our boards provide an opportunity to install thinner layers of insulation, ultimately creating more living space. Trust in Recticel PL Insulation for guaranteed maximum comfort in your living or working space.

About

Recticel Insulation isn't just a company that produces PIR Insulation products of the highest quality. We're also a team of innovators and thought leaders, constantly striving to develop insulation solutions that push the boundaries of thermal performance and usability.

Our team is dedicated to pioneering new techniques and technologies in the industry, always searching for ways to improve and optimize our products. Trust in Recticel Insulation Boards for unparalleled quality and a commitment to a sustainable future.

Info

Have a browse of our Recticel stock and filter by thickness or coverage on the left-hand side of the page. If you’d like to talk through the suitability of some products for your project, or get a quantity discount quotation please call us by phone on +4402039519012 , email sales@insulationstoreonline or Live Chat - Lowest UK Insulation Prices. Recticel Insulation isn't just a company that produces PIR products of the highest quality. We're also a team of innovators and thought leaders, constantly striving to develop insulation solutions that push the boundaries of thermal performance and usability
