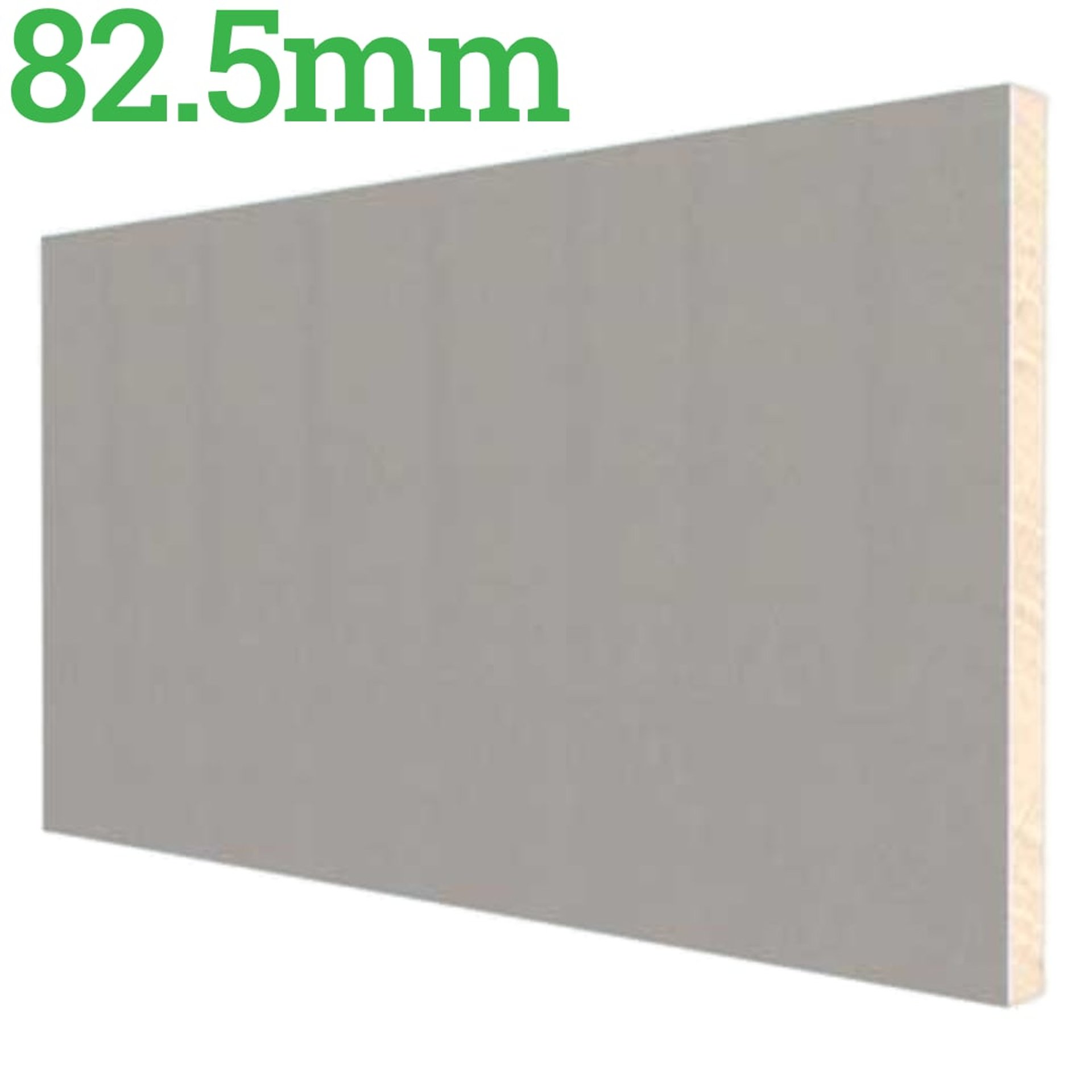

82.5mm EcoTherm Eco-Liner PIR Insulated Plasterboard

82.5mm Eco-Liner Insulated Plasterboard is a cutting-edge insulated plasterboard that serves as both insulation and finish for walls in a single application. Specifically designed for mechanically fixed and adhesively bonded drylining systems, this innovative product boasts an insulation component with an impressive thermal conductivity rating of 0.022 W/mK. With its dual functionality, Eco-Liner 82.5mm is the perfect solution for insulating and finishing internal walls and pitched roofs in an efficient and effective manner.

Properties

Model: 82.5mm EcoTherm Eco-Liner

Thickness: 82.5mm

Pack Quantity: 1 sheet

Dimensions: 2,400mm x 1,200mm x 82.5mm ( 70mm PIR bonded to 12.5mm Plasterboard)

Length: 2400mm

Width: 1200mm

Weight : Eco-Liner has an approximate weight of 10.76 kg/m2 at a thickness of 82.5 mm (insulation thickness 70 mm plus 12.5 mm plasterboard)

Compressive Strength: >>140kPa

Material: Eco-Liner is a high performance rigid thermoset polyisocyanurate PIR insulation.

Thermal Conductivity: Insulation: 0.022 W/mK & Plasterboard: 0.19 W/mK

Thermal Resistance: 3.25 m2K/W

Core Density: 28kg/m3

Fire Classification: European Classification (Euroclass) B-s1,d0 when classified to EN 13501-1: 2018.

Coverage: 2.88m2

Surface: Composite kraft paper facing adhered to 12.5mm or 9.5mm*plasterboard

Facing: 82.5mm Ecotherm has a bilaminate foil/kraft paper facing on the outer, bonded to a 12.5 mm tapered edge gypsum plasterboard on the inner facing.

Finish: Kraft facing ǀ Composite foil

Core water vapour resistivity: 2743 x 1200

Edge: Butt

Fire Performance: BS 476-7 / Class 1

Application: Eco-Liner 82.5mm insulated plasterboard is internal wall insulation for solid, cavity or timber frame walls within new and existing properties. Eco-Liner is also an ideal insulation product for pitched roofs.

highlights

The product highlights of Eco-Liner include its 2 in 1 solution for insulating and drylining walls in one application, its high-performance rigid polyisocyanurate 70mm PIR insulation Board core with a tapered edge 12.5mm gypsum plasterboard, its suitability for room-in-the-roof applications, walls, and cold flat roofs, and its insulation component with a low thermal conductivity of 0.022 W/mK.

Fire Performance

82.5mm Ecotherm has successfully achieved a European Classification (Euroclass) of B-s1,d0 when classified according to EN 13501-1:2018, which is a standard for fire classification of construction products and building elements based on reaction to fire tests.

Thermal Performance

The thermal conductivity (lambda/λ - value) of Eco-Liner's 82.5mm insulation core component is an impressive 0.022 W/mK, while the 12.5 mm gypsum plasterboard component achieves a thermal conductivity of 0.19 W/mK.

Durability

When installed correctly, 82.5mm Ecotherm Eco-Liner is designed to have an indefinite lifespan. However, the durability of the product may vary depending on factors such as the method of application, the quality of the supporting structure, and the conditions of use. It's important to note that the 82.5mm insulated plasterboard is not recommended for use as a dampness isolator or in continuously damp/humid conditions. Proper consideration of application methods and usage conditions is essential for ensuring the optimal performance and longevity of Eco-Liner.
