100mm Heaveguard ǀ Protection Against Ground Heave for Foundations

100mm Heaveguard, a compressible 100mm Expanded Polystyrene product with low density, serves as a crucial component in safeguarding foundations from ground heave. It is an essential element within the Cordek solution for ground heave, shielding against lateral heave, especially along the inner surface of piled ground beams or deep trench fill foundations.

Product specification

Brand: Cordek®

Model: 100mm Heaveguard

Thickness: 100mm

Length: 2400mm

Width: 1200mm

Dimensions: 2,400mm x 1,200mm x 100mm

Colour: Light green

Material: Expanded Polystyrene (EPS)

Profile: Compressible-fill material

Shipping method: Rigid Vehicle ǀ Courier

Applications: Foundations ǀ Piled Ground Beams

BBA Certified: Yes (No.17/5448)

Soil heave potential: Medium

Features: Protection Against Ground Heave ǀ Foundations

Safe load: 20 kN/m2

Manufacturer: Cordek Clay Heave Board Heaveguard®

Fail load: 40 kN/m2 produce 50% compression

Attributes

1. Minimizes lateral force impact on the structure
2. BBA certified for quality assurance
3. Compliant with NHBC’s Technical Standards
4. Available in various sheet sizes and thicknesses to accommodate diverse applications

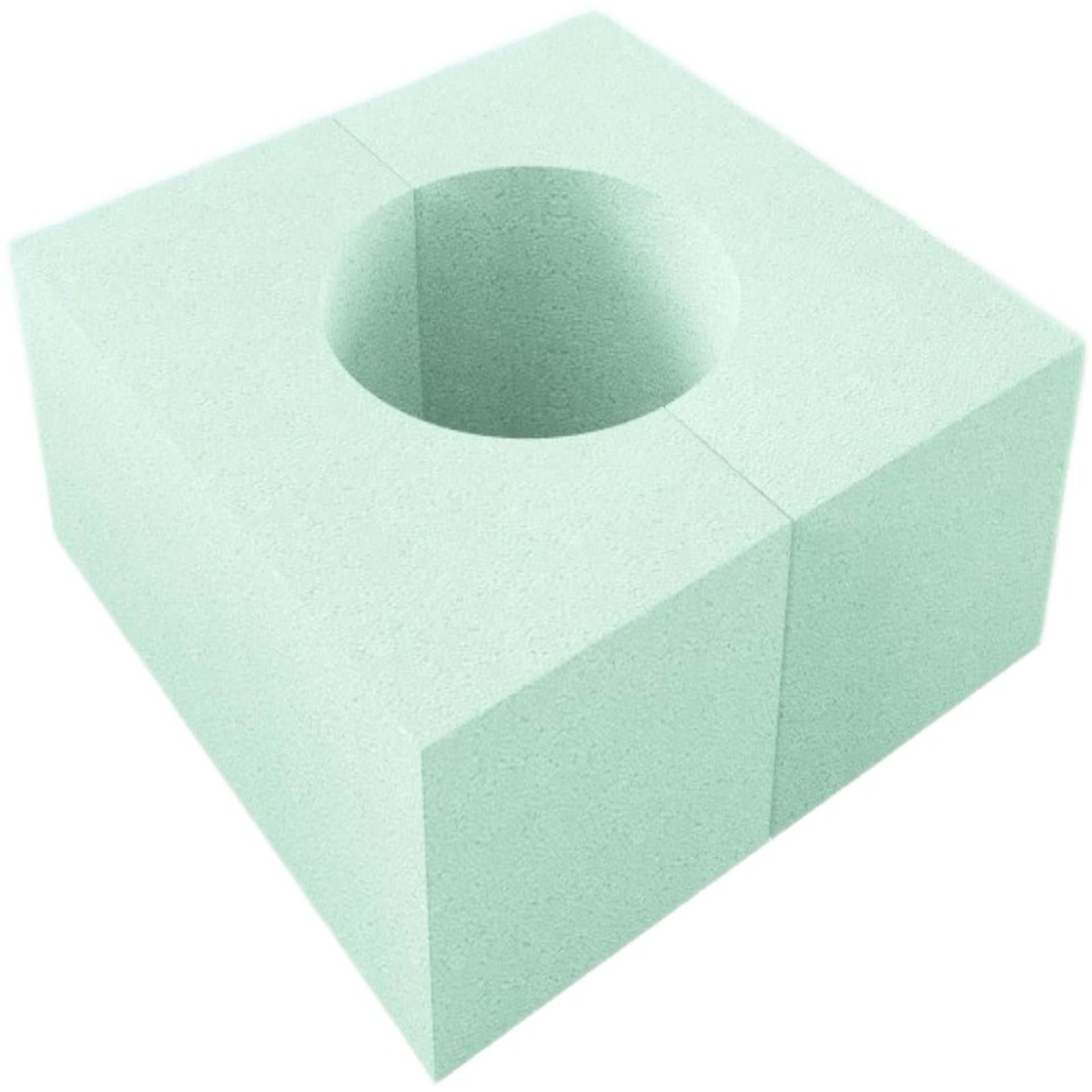

5. Offered as a pile collar to facilitate the installation of Cordek Cellcore range
6. Easily identifiable on-site due to its distinctive green coloration
7. 100mm polystyrene insulation Board

Cordek Heaveguard, with a thickness of 100mm, is an expanded polystyrene (EPS Insulation) material engineered to safeguard foundations from ground heave.

Utilizations

100mm Cordek Heaveguard is employed to shield against lateral heave, commonly applied on the inner surface of piled ground beams or deep trench fill foundations.

Suitability

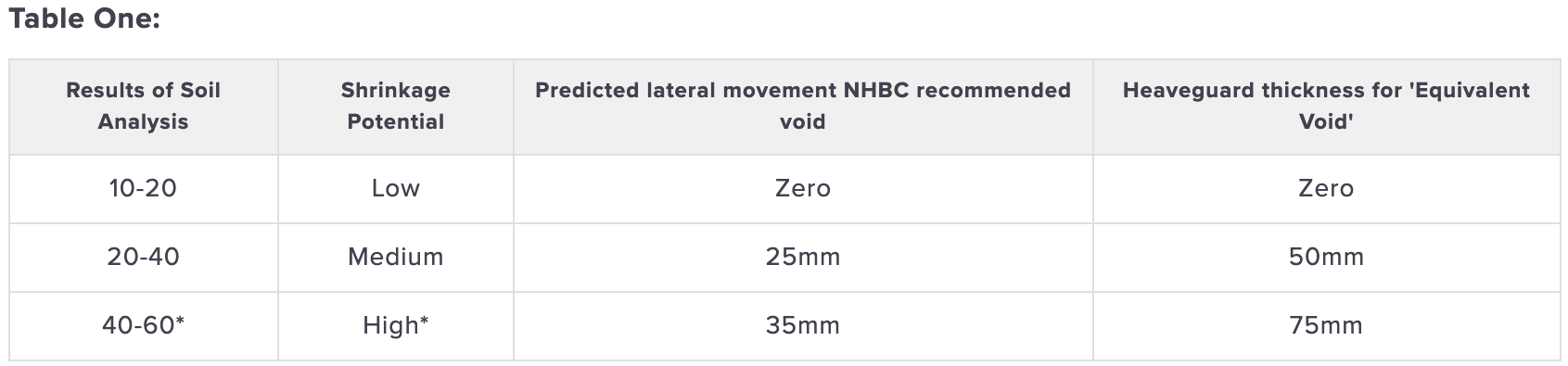

The necessary 100mm Heaveguard eps thickness depends on the anticipated lateral movement and the void recommendations outlined by NHBC, as specified in table one below. It's important to note that Heaveguard, along with other compressible polystyrenes, only compress significantly when loads surpass 20 kN/m2. A 50% compression requires a load of 40 kN/m2. Due to this, 100mm Heaveguard isn't advisable for applications beneath ground floor slabs, piled beams, or pile caps.

*When the analysis exceeds 60 or the shrinkage potential is greater than High, please consult the InsulationStore Technical Team for further information.
